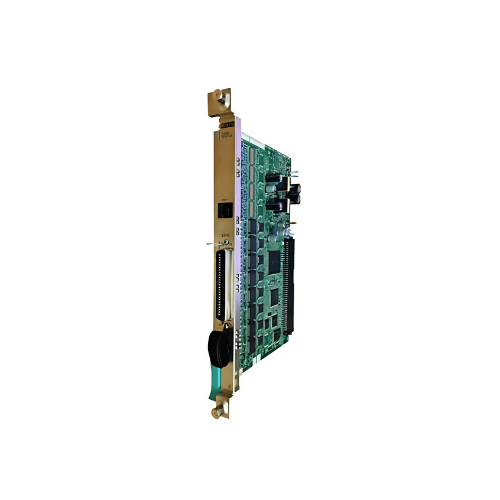

Panasonic KX-TDA1176 (Original)

Panasonic KX-TDA1176 is a 16-port single-line extension card original designed to expand the capacity of specific Panasonic PBX telephone systems. It provides 16 additional ports for connecting analog devices like standard single-line phones, fax machines, and credit card terminals.

Key Features & Compatibility

Panasonic KX-TDA1176 card is a crucial component for businesses looking to expand their phone system’s capacity without replacing the entire PBX.

• 16 Extension Ports: It adds 16 ports specifically for single-line devices, offering a cost-effective way to accommodate more users or equipment.
• Caller ID and Message Waiting: The card supports Caller ID on single-line telephones and can illuminate a message waiting indicator light on compatible devices.
• DTMF Receivers: It is equipped with 16 DTMF (Dual-Tone Multi-Frequency) receivers, which are essential for processing touch-tone signals from phones.
• Power Failure Transfer: Two of the ports are equipped with a power failure transfer feature, which can be critical for ensuring at least two lines remain operational during a power outage.
• System Compatibility: The KX-TDA1176 is primarily compatible with Panasonic’s KX-TDA series, including the KX-TDA100D, and also with the KX-TDE series, such as the KX-TDE100 and KX-TDE200, typically with version 5.0 or higher firmware.

Installation

Installation is a straightforward process that involves plugging the card into a free slot in the PBX unit. It’s recommended that a qualified service technician performs the installation and subsequent programming to ensure the system functions correctly. Static electricity can damage the card, so technicians must take precautions like wearing a grounding strap before handling the equipment.
