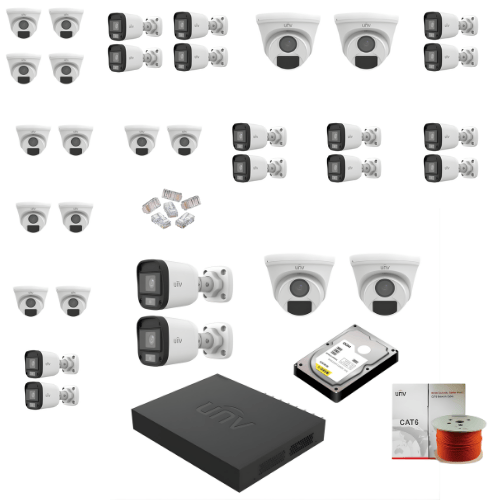

32 CCTV HDCVI Audio LED Camera Package Brand Dahua/Uniview/ Hikvision

32 CCTV HDCVI Audio LED Camera Package Brand Dahua/Uniview/ Hikvision
32 CCTV Camera Package – Complete System

Core Components

1. Cameras (32 Units)

Options to Consider:

• Bullet Cameras: Ideal for outdoor long-range monitoring (parking lots, perimeters)
• Dome Cameras: Best for indoor/outdoor general coverage, vandal-resistant
• PTZ Cameras: For areas requiring pan, tilt, and zoom capability
• Turret Cameras: Compact design with better low-light performance

Recommended Specifications:

• Resolution: 4MP minimum, 5MP-8MP for better detail
• Night Vision: 30-40m IR range
• Weatherproof: IP66 or IP67 rated for outdoor use
• Wide Dynamic Range (WDR) for varying light conditions
• Smart Detection: Human/vehicle detection, line crossing

2. Network Video Recorder (NVR) or Digital Video Recorder (DVR)

• Capacity: 32-channel system
• Storage: 8TB-16TB hard drive array (stores 30-90 days of footage)
• Multiple HDD Support: 4-8 drive bays for expansion
• Recording Resolution: Supports up to 4K/8MP per channel
• Features: AI analytics, facial recognition, motion detection, remote access

3. Cabling & Power

For IP/Network Cameras (Recommended):

• Cat6 Ethernet cables (up to 100m per run)
• PoE+ switches – Two 16-port or one 32-port managed switch
• Central PoE power backup
• Reduces installation complexity

For Analog/HD Cameras:

• Coaxial cables (RG59 or RG6)
• Centralized power supply (30-40A)
• Individual cable runs for each camera

4. Storage Solution

• Primary Storage:
  • 2 x 8TB or 4 x 4TB surveillance-grade HDDs
  • RAID configuration for redundancy
  • WD Purple or Seagate SkyHawk recommended
• Backup:
  • NAS (Network Attached Storage) for archiving
  • Optional cloud storage subscription

5. Display & Monitoring

• 32″-43″ 4K monitor for live viewing (or multiple monitors)
• Video wall controller for multi-screen setup
• HDMI 2.0 or DisplayPort connections
• Split-screen viewing (4/9/16/32 camera grid)

6. Network Infrastructure

• Enterprise-grade router with QoS support
• Managed network switches (24-48 port)
• Dedicated VLAN for camera network
• Network cable tester
• UPS (2-3KVA) for complete system backup

Installation Accessories

• Heavy-duty mounting brackets
• Junction boxes (weatherproof)
• Cable conduit and trunking (100m+)
• Weatherproof connectors and grommets
• Patch panels and cable organizers
• Professional crimping and testing tools
• Warning signage and labels

Coverage Planning for 32 Cameras

Typical Coverage Areas:

• 8-12 cameras: Complete perimeter coverage
• 4-6 cameras: All entry/exit points
• 4-6 cameras: Parking areas and driveways
• 6-8 cameras: Critical indoor areas (lobby, corridors, cash points)
• 4-6 cameras: Warehouse/storage areas
• 2-4 cameras: Special coverage (server room, safe, high-value areas)

Property Types Suitable for 32 Cameras:

• Medium to large commercial buildings
• Factories and warehouses
• Hotels and resorts
• Schools and educational institutions
• Hospitals and healthcare facilities
• Large retail stores or shopping complexes
• Multi-building residential complexes
• Corporate offices (3-5 floors)

Layout Considerations:

• Create zone-based coverage maps
• Ensure 20-30% overlapping coverage
• Mix camera types based on location needs
• Position at 8-12 feet height
• Consider lighting conditions for each location
• Plan for future expansion capability

Advanced Features for 32-Camera Systems

AI & Analytics

• Facial Recognition: Identify people, create watchlists
• License Plate Recognition (LPR): Vehicle tracking
• People Counting: Traffic analysis and occupancy
• Perimeter Protection: Virtual fencing, intrusion alerts
• Behavior Analysis: Loitering, crowd detection
• Heat Mapping: Understand traffic patterns

Integration Capabilities

• Access control system integration
• Fire alarm system linkage
• Building management system (BMS)
• Point-of-sale (POS) integration
• Alarm system integration
• Intercom system connectivity

Remote Management

• Multi-site monitoring from single location
• Mobile apps (iOS/Android)
• Web browser access
• Real-time alerts and notifications
• Cloud backup and storage options
• Remote firmware updates

Network & Bandwidth Requirements

Bandwidth Calculation (Example):

• 32 cameras at 4MP resolution
• H.265 compression
• 15 FPS recording
• Estimated: 2-3 Mbps per camera
• Total bandwidth needed: 64-96 Mbps
• Recommended internet: 100 Mbps+ for remote viewing

Storage Calculation:

• 32 cameras × 4MP × 24 hours × 30 days
• Approximately 10-12TB per month
• 16TB storage = 30-45 days retention

System Architecture Options

Option 1: Centralized System

• Single 32-channel NVR
• All cameras connected to one location
• Easier management
• Single point of failure

Option 2: Distributed System

• Multiple 16-channel NVRs
• Zone-based recording
• Redundancy built-in
• Better for large properties

Option 3: Hybrid Cloud System

• Local NVR for primary recording
• Cloud backup for critical cameras
• Best of both worlds
• Higher ongoing costs

Installation & Setup

Professional Installation Recommended:

• Site survey and planning (2-3 days)
• Cable routing and installation (5-7 days)
• Camera mounting and positioning (2-3 days)
• Network configuration and testing (1-2 days)
• Training and handover (1 day)
• Property size and complexity
• Cable routing difficulty
• Special requirements (height work, concealment)
• Network infrastructure setup

Maintenance & Support

Regular Maintenance Schedule:

• Monthly: Check recording status, review alerts
• Quarterly: Clean camera lenses, check connections
• Semi-annually: Firmware updates, system health check
• Annually: Complete system audit, cable inspection

Compliance & Legal Considerations

• Data Protection: Secure storage, access controls
• Privacy: Avoid pointing cameras at private areas
• Signage: Display CCTV monitoring notices
• Retention: Follow industry standards (30-90 days)
• Access Logs: Maintain records of who views footage

Power Backup Solution

Essential Components:

• 3KVA Online UPS for NVR and switches
• 1-2 hours backup time minimum
• Surge protection
• Automatic voltage regulation

Return on Investment (ROI)

Benefits:

• Theft and vandalism prevention
• Insurance premium reduction (10-20%)
• Employee productivity monitoring
• Incident investigation and evidence
• Remote property monitoring
• Enhanced security perception

Payback Period: 1-3 years for commercial properties

Important Notes:

• Always purchase from authorized dealers for warranty
• Ensure compatibility between cameras and NVR
• Plan for 10-20% future expansion
• Budget for annual maintenance
• Consider professional monitoring services
• Keep system documentation updated

Next Steps:

1. Conduct site survey
2. Create detailed camera placement plan
3. Get quotes from 3-4 vendors
4. Verify warranty and support terms
5. Schedule professional installation
